Airtight Zipper
A high-performance Aeroseal airtight zipper from a trusted supplier, offering a robust IPX7 seal for demanding applications.
- Robust IPX7 Airtight Seal: Delivers complete protection against liquid and gas ingress, certified for full immersion.
- High Tensile Strength: Features a transverse strength of 970N, significantly exceeding the >700N industry requirement.
- Exceptional Durability: Proven to withstand 1100 reciprocating cycles under load, nearly double the standard of 600 cycles.
- Fully Customizable: Available in a range of colors, including beige, to match your specific product design and branding needs.

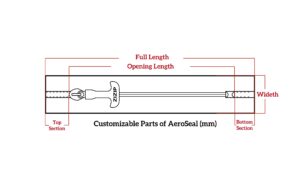

Custom Details Of Beige Aeroseal Airtight Zipper
Aeroseal Airtight Zipper Technical Data Sheet
| Inspection Item | Test Result |
Compliance Threshold
|
| Transverse Tensile Strength | 970N | >700N |
| Slider Initial Pull Force | 41N | <50N |
| Smooth Sliding Performance | 30N | <40N |
| Abrasion Resistance | 70 continuous reciprocating cycles |
50 continuous reciprocating cycles
|
| Hermetic Sealing | Maintains leak-free integrity at 20kPa for >14 seconds |
Maintains leak-free integrity at 20kPa for 10 seconds
|
| Tooth-to-Tape Peel Strength | 23-35N/23-36N/24-41N |
Tooth Engagement Width 1.5cm, >20N
|
| Tape-to-Finishing Peel Strength | 24-33N/27-36N/25-33N |
Tape Body Width 1.5cm, >15N
|
| Reciprocating Test under Load | 1100 cycles | >600 cycles |
| Waterproof Rating | IPX7 (SGS) |
GB/T 4208-2017 IPX7
|
| Water Penetration Test | No leakage after 10 min in inverted position w/ 5kg water load |
No leakage after 5 min in inverted position w/ 5kg water load
|
| Slider Hardness | 115HV0.3 |
Vickers-Hardness 0.3 Test (>80 HV0.3)
|
| Slider Load Capacity | 170N | >100N |
| Slider Tensile Strength | 165N | >100N |
| Pull Tab Torque Resistance | 345N | >200N |
| Pull Tab Extraction Strength | 255N | >150N |
Inquire About Custom Aeroseal Zippers

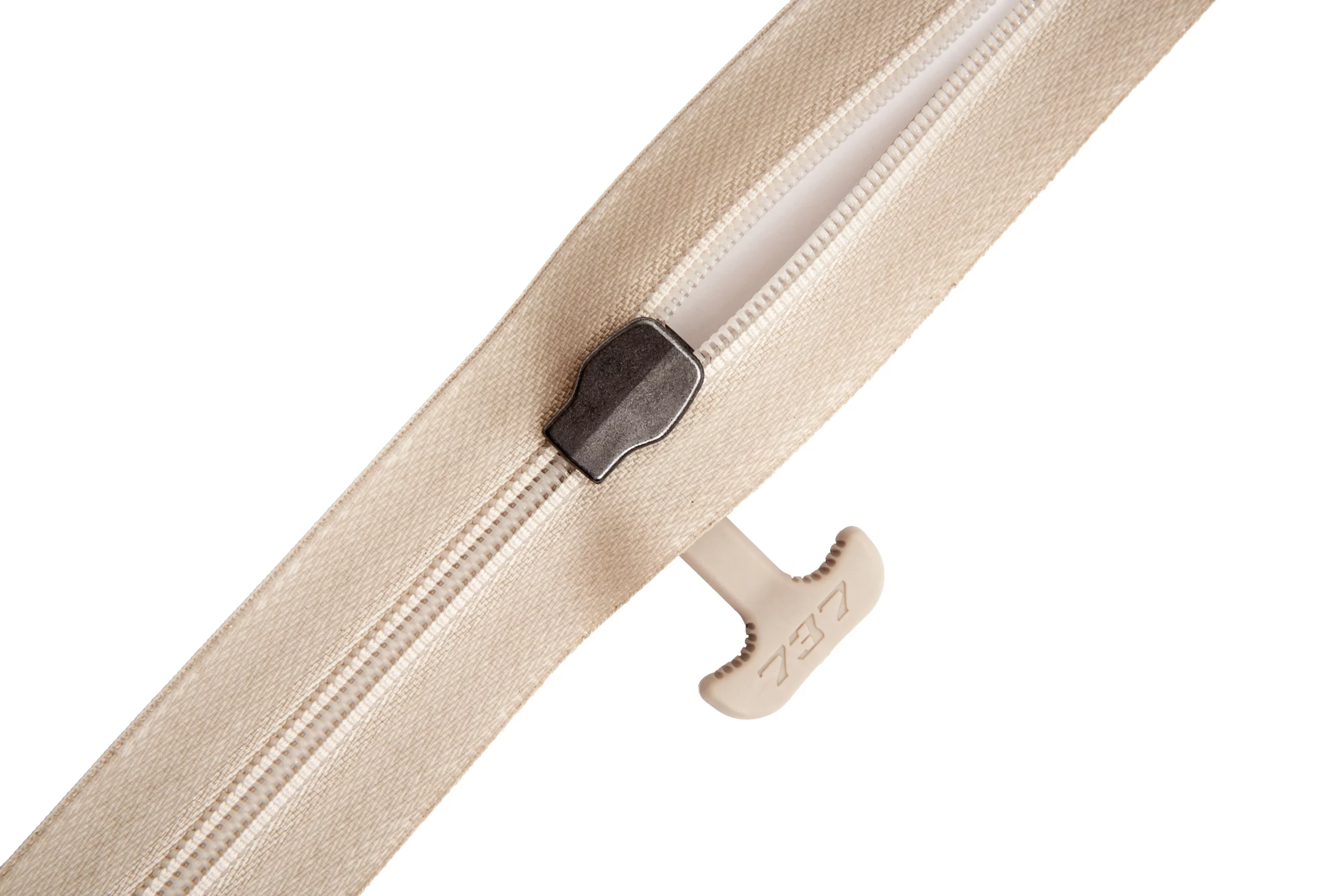

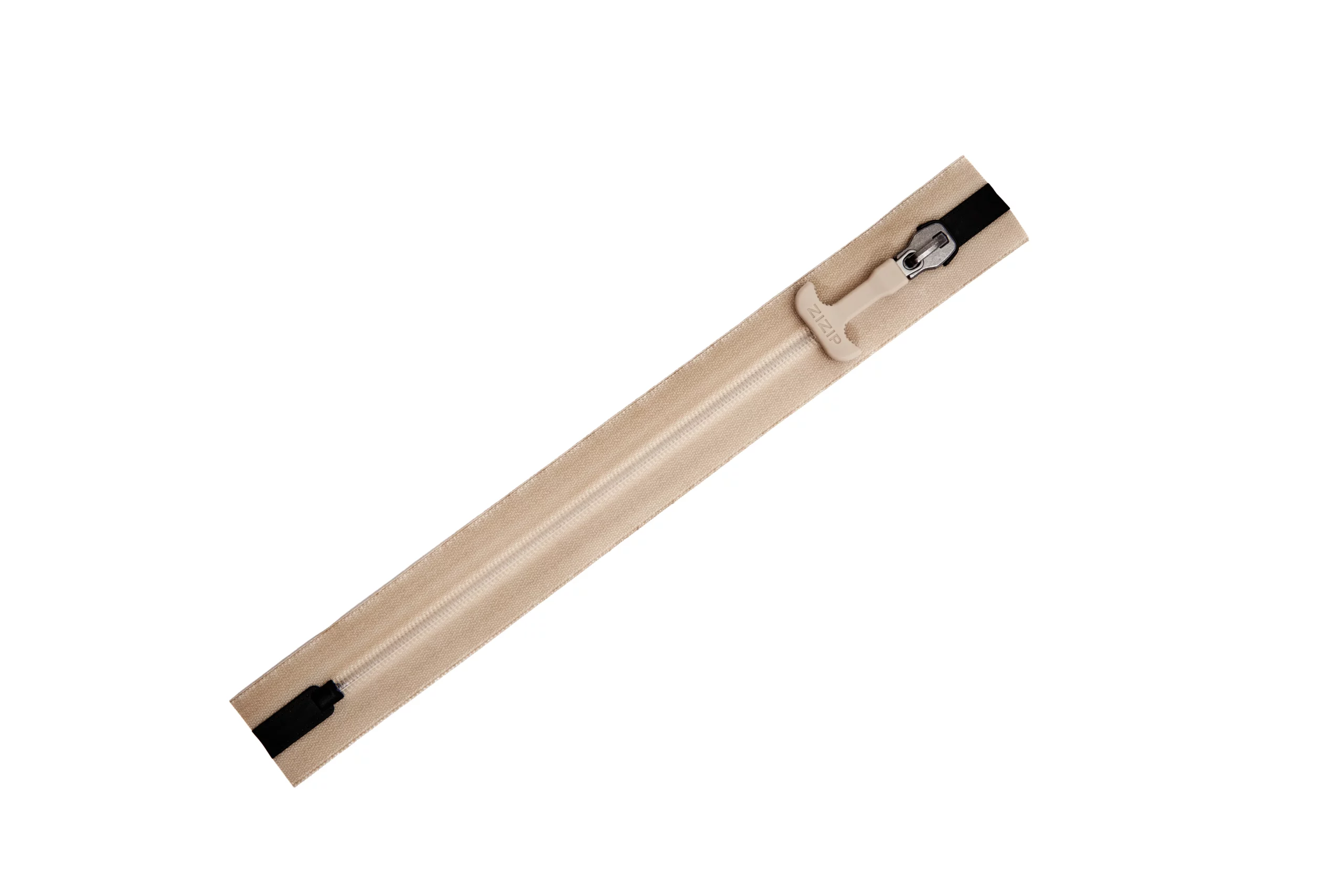

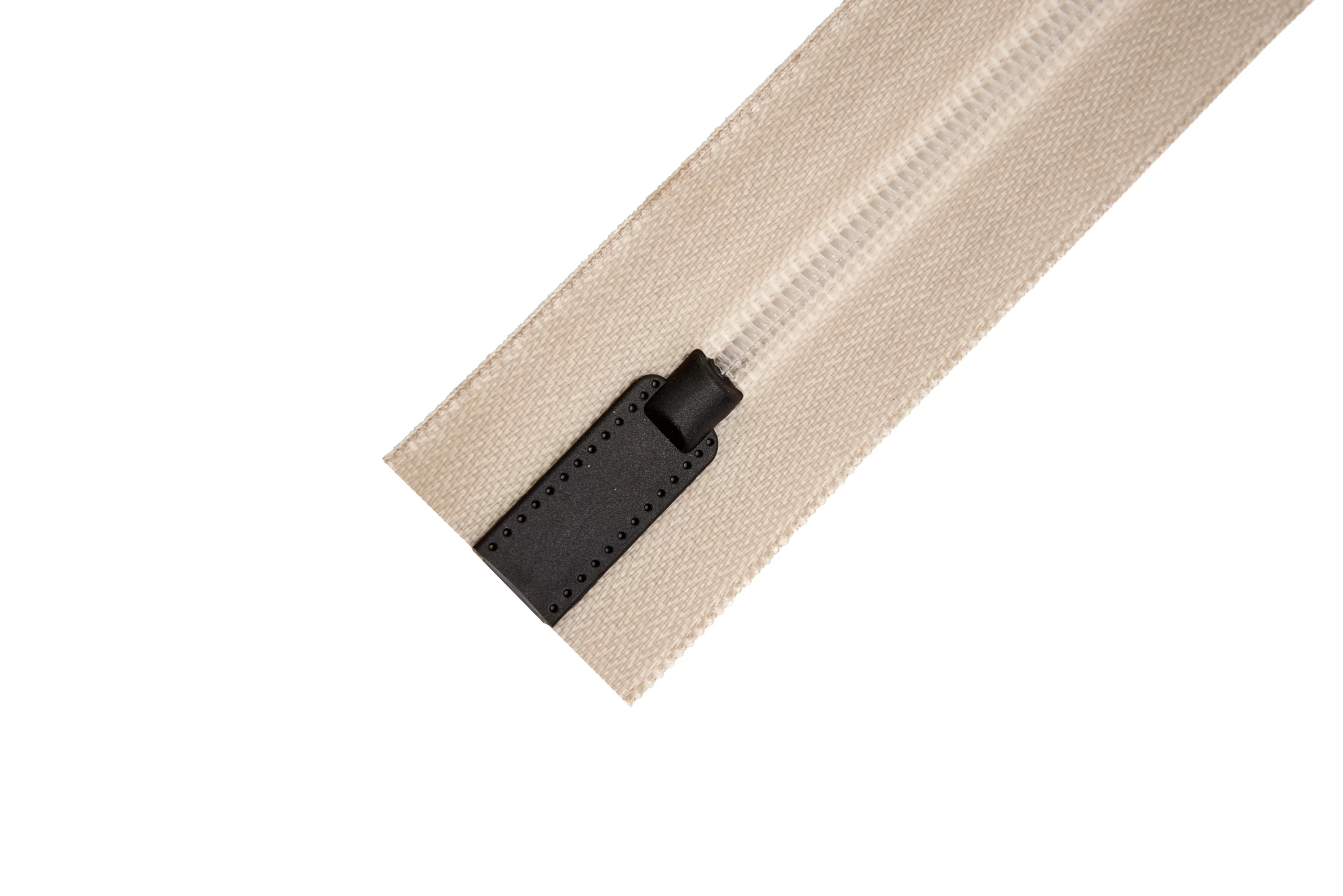

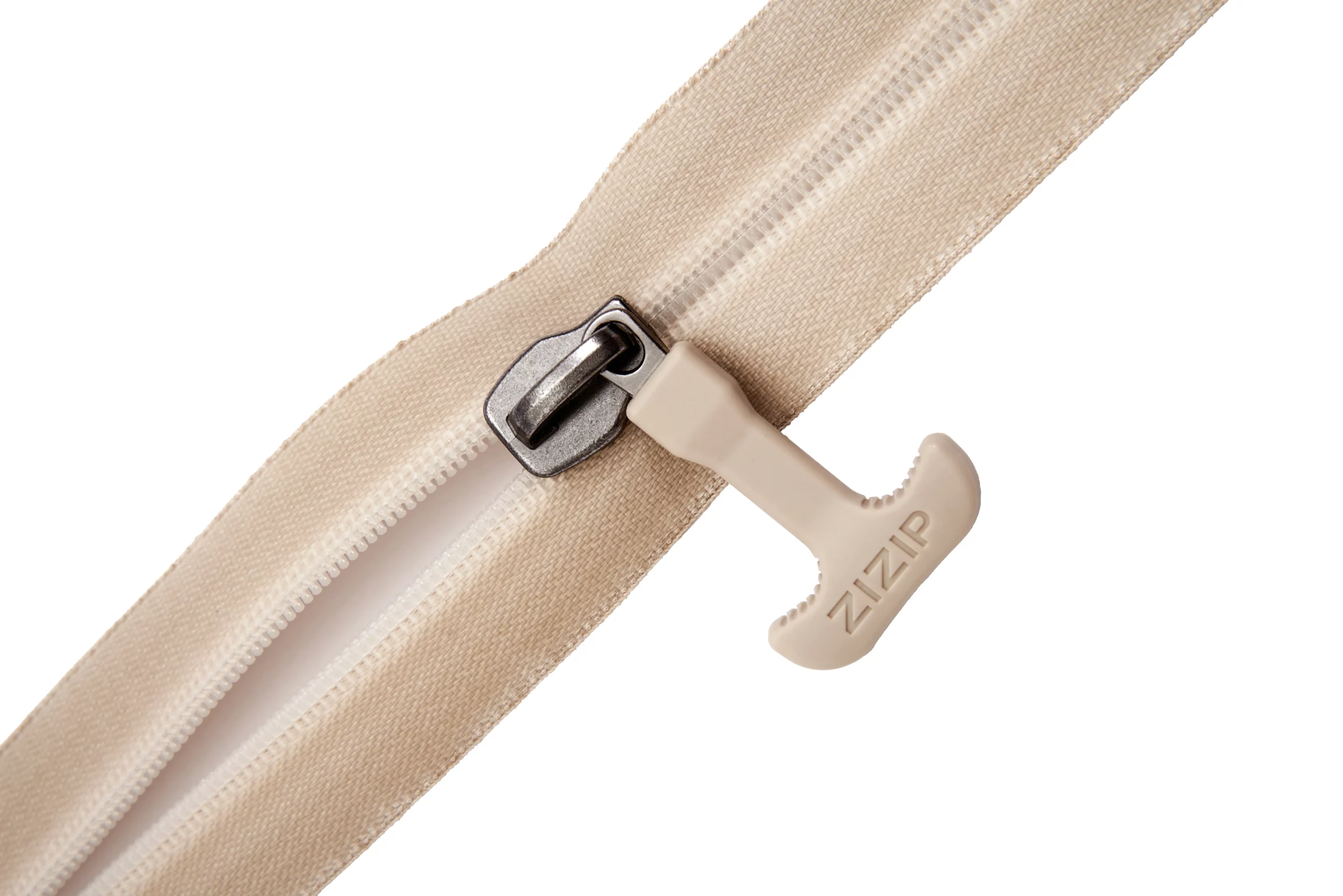

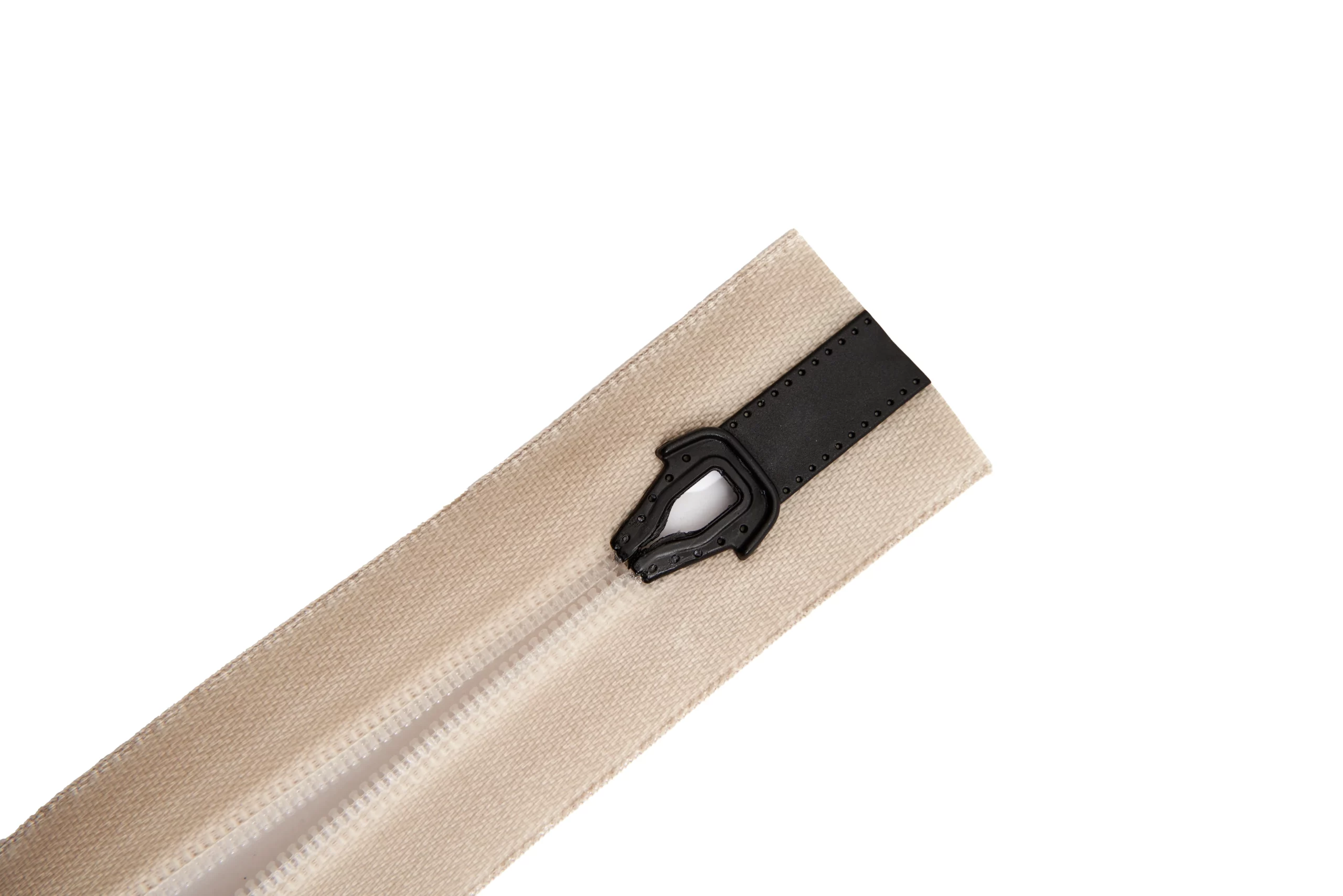

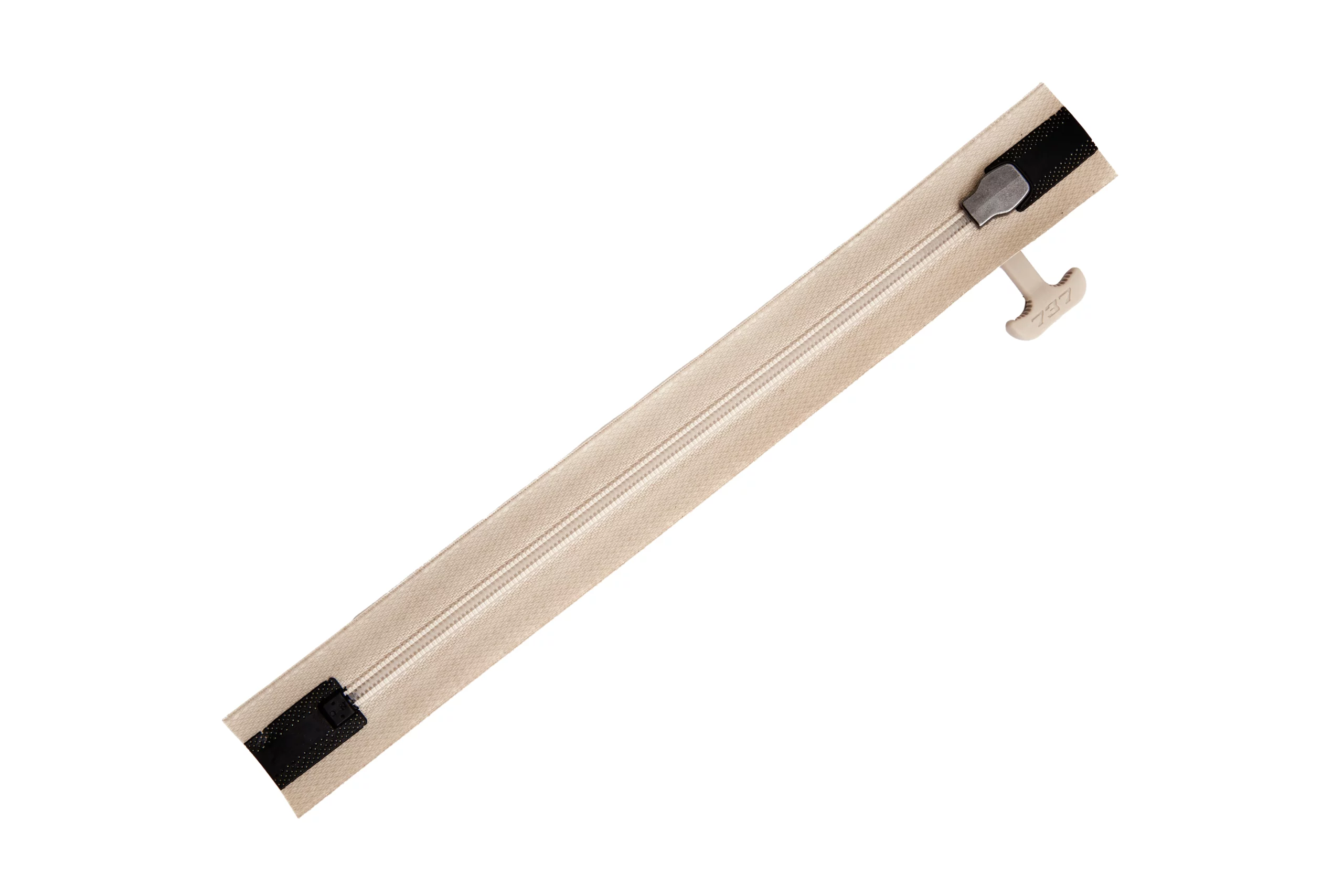

Beige Aeroseal Airtight Zipper Detail Display
