Dual-Slider AeroSeal™ Airtight Zipper
Versatile, Two-Way Access With Certified IPX7 Hermetic Sealing.
Building on the high-performance design of our standard zipper, the Dual-Slider Aeroseal™ introduces the added versatility of a two-way opening.
This zipper achieves a certified IPX7 waterproof rating while also delivering an advanced hermetic seal, offering superior protection against liquids and gases. Its dual-slider configuration allows for convenient access from either end, making it the perfect choice for demanding applications like large enclosures, equipment covers, and medical isolation chambers, where operational flexibility is paramount.
Key Feature

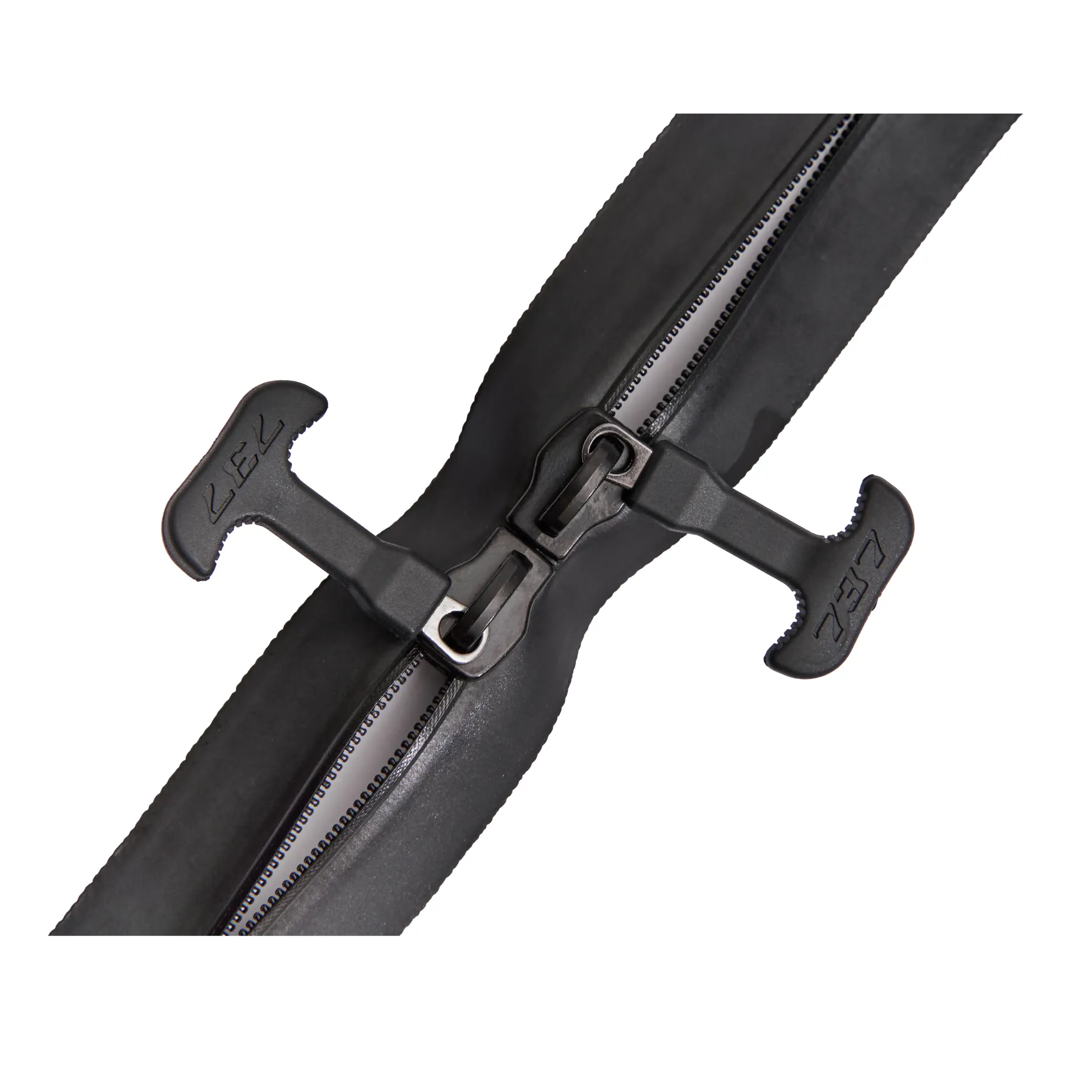

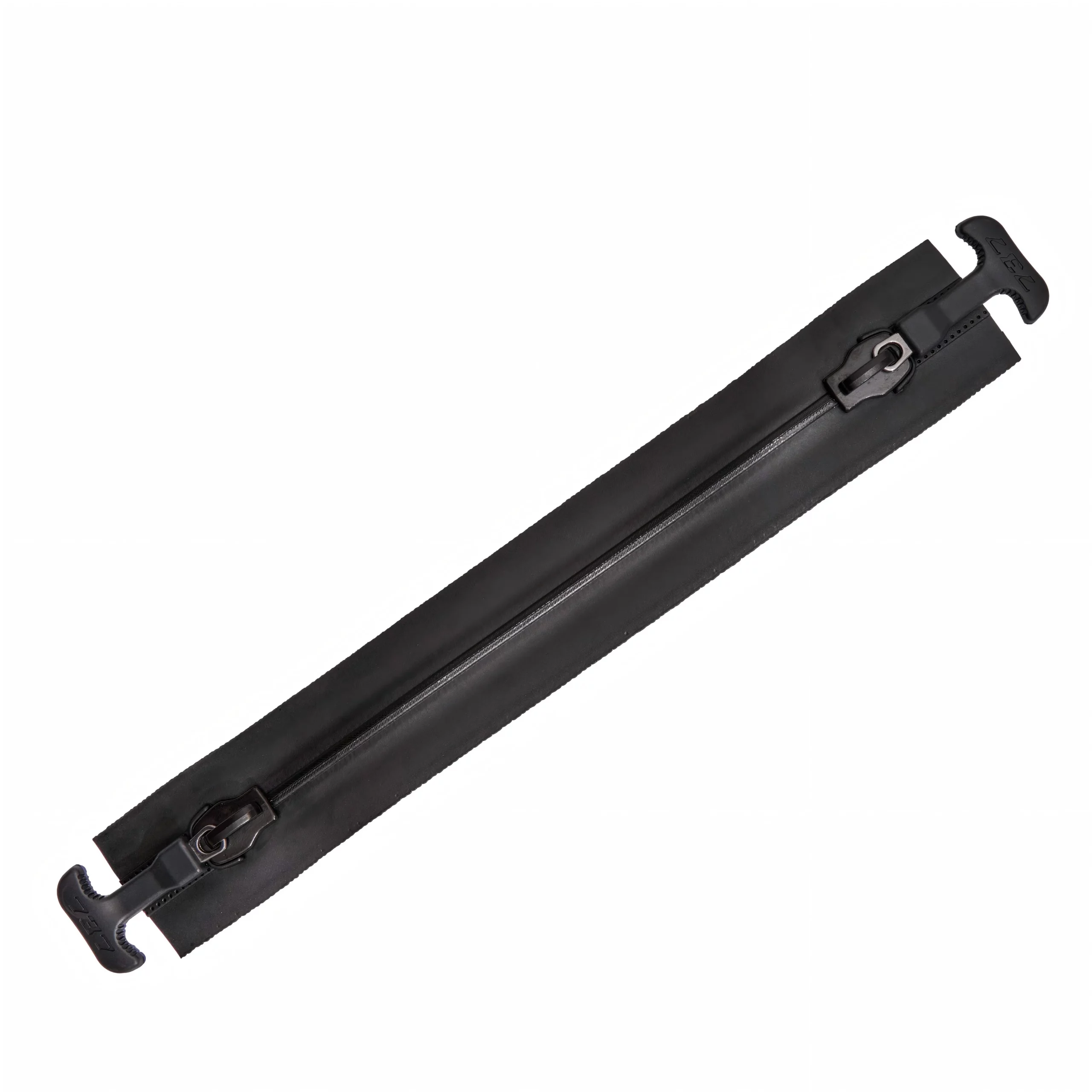

Versatile Two-Way Access
Two sliders provide operational flexibility, allowing the zipper to be opened or closed from either direction or to create a specific opening anywhere along the chain.
Robust IPX7 Airtight Seal
The core zipper chain delivers the same certified protection against liquid and gas ingress as our flagship Standard Aeroseal™.
High-Strength Construction
Built to the same high tensile strength and durability standards, ensuring reliable performance even with frequent use on large applications.
Ideal for Large Openings
Simplifies access to the contents of large bags, tents, and enclosures without needing to fully open the zipper.
Find the Right AeroSeal™ Size
Technical Report
| Inspection Item | Test Result | Compliance Threshold |
| Transverse Tensile Strength | 660N | >500N |
| Slider Initial Pull Force | 35N | <50N |
| Smooth Sliding Performance | 30N | <40N |
| Abrasion Resistance | 60 continuous reciprocating cycles | 50 continuous reciprocating cycles |
| Hermetic Sealing | Maintains leak-free integrity at 20kPa for >=9 seconds | Maintains leak-free integrity at 20kPa for 5 seconds |
| Tooth-to-Tape Peel Strength | 28-35N/27-38N/30-41N | Tooth Engagement Width 1.5cm, >=20N |
| Tape-to-Finishing Peel Strength | 24-33N/27-36N/25-33N | Tape Body Width 1.5cm, >15N |
| Reciprocating Test under Load | 700 cycles | >500 cycles |
| Waterproof Rating | IPX7 (SGS) | GB/T 4208-2017 IPX7 |
| Water Penetration Test | No leakage after 10 min in inverted position w/ 5kg water load | No leakage after 5 min in inverted position w/ 3kg water load |
| Slider Hardness | 115HV0.3 | Vickers-Hardness 0.3 Test (>80 HV0.3) |
| Slider Load Capacity | 150N | >100N |
| Slider Tensile Strength | 145N | >100N |
| Pull Tab Torque Resistance | 135N | >100N |
| Pull Tab Extraction Strength | 145N | >100N |
| Inspection Item | Test Result | Compliance Threshold |
| Transverse Tensile Strength | 970N | >700N |
| Slider Initial Pull Force | 41N | <50N |
| Smooth Sliding Performance | 30N | <40N |
| Abrasion Resistance | 70 continuous reciprocating cycles | 50 continuous reciprocating cycles |
| Hermetic Sealing | Maintains leak-free integrity at 20kPa for >14 seconds | Maintains leak-free integrity at 20kPa for 10 seconds |
| Tooth-to-Tape Peel Strength | 23-35N/23-36N/24-41N | Tooth Engagement Width 1.5cm, >20N |
| Tape-to-Finishing Peel Strength | 24-33N/27-36N/25-33N | Tape Body Width 1.5cm, >15N |
| Reciprocating Test under Load | 1100 cycles | >600 cycles |
| Waterproof Rating | IPX7 (SGS) | GB/T 4208-2017 IPX7 |
| Water Penetration Test | No leakage after 10 min in inverted position w/ 5kg water load | No leakage after 5 min in inverted position w/ 5kg water load |
| Slider Hardness | 115HV0.3 | Vickers-Hardness 0.3 Test (>80 HV0.3) |
| Slider Load Capacity | 170N | >100N |
| Slider Tensile Strength | 165N | >100N |
| Pull Tab Torque Resistance | 345N | >200N |
| Pull Tab Extraction Strength | 255N | >150N |
| Inspection Item | Test Result | Compliance Threshold |
| Transverse Tensile Strength | 1205N | >900N |
| Slider Initial Pull Force | 50N | <60N |
| Smooth Sliding Performance | 35N | <40N |
| Abrasion Resistance | 150 continuous reciprocating cycles | 100 continuous reciprocating cycles |
| Hermetic Sealing | Maintains leak-free integrity at 20kPa for >15 seconds | Maintains leak-free integrity at 20kPa for 15 seconds |
| Tooth-to-Tape Peel Strength | 32-46N/34-41N/35-43N | Tooth Engagement Width 1.5cm, >25N |
| Tape-to-Finishing Peel Strength | 24-28N/25-33N/26-35N | Tape Body Width 1.5cm, >20N |
| Reciprocating Test under Load | 2000cycles | >1000 cycles |
| Waterproof Rating | IPX7 (SGS) | GB/T 4208-2017 IPX7 |
| Water Penetration Test | No leakage after 10 min in inverted position w/ 5kg water load | No leakage after 10 min in inverted position w/ 5kg water load |
| Slider Hardness | 115HV0.3 | Vickers-Hardness 0.3 Test (>80 HV0.3) |
| Slider Load Capacity | 210N | >200N |
| Slider Tensile Strength | 545N | >100N |
| Pull Tab Torque Resistance | 345N | >400N |
| Pull Tab Extraction Strength | 495N | >300N |
AeroSeal Airtight Zipper
AquaSeal Waterproof Zipper
Get A Free Quote
Trusted in the World's Most Demanding Environments
Allows for easy access to specific parts of machinery or equipment without removing the entire cover.
Provides flexible access for medical staff to attend to patients from different positions.
Enables customizable ventilation and access points for large, multi-person tents.
Custom Engineered Sealing Solutions (OEM/ODM)
Our vertically integrated manufacturing process gives us complete control over production, allowing us to offer extensive customization for our partners. We work directly with your design and engineering teams to create waterproof and airtight zippers that meet your product’s exact technical and branding specifications.
Millimeter-Perfect Customization
Precision is paramount. We manufacture zippers to your exact length specifications, achieving millimeter-level accuracy. This dedication ensures seamless integration into your application, significantly minimizing material waste, and simplifies your overall assembly process.
Custom Colors for Brand Matching
Match your brand’s exact color palette. We provide custom color matching for both the zipper tape and the TPU coating based on the Pantone (PMS) color system, ensuring seamless integration with your product’s design.
Specialized Puller Designs with Your Logo
We offer a variety of industrial-grade zipper puller options tailored for different application scenarios, combining functionality, ergonomics, and visual appeal, with the option to customize brand logos upon request.
Custom Material & Coating
Engineered for your specific application. Our zippers are built with high-strength
Polyester fabric tape and coated with a high-performance TPU (Thermoplastic Polyurethane) layer. We work with you to ensure the material combination provides the optimal balance of flexibility, durability, and sealing performance.Consult our team of engineers and we will deliver the optimal solution tailored to your specific needs.
SUPPORT & FAQ
Minimum Order Quantity (MOQ)
Complimentary samples
Verified Test Data & Quality Certifications
We provide comprehensive documentation, including SGS Waterproof Test Reports, REACH Compliance Reports, and ISO Certifications, ensuring adherence to global standards. Furthermore, each zipper batch undergoes rigorous internal self-inspection by our dedicated factory Quality Control department. For detailed reports and further information, please contact our customer service team.
Technical Support
- Bespoke Sealing Solution Design: For highly specialized application scenarios, including demanding sectors like aerospace equipment, our engineers develop bespoke sealing plan designs.
- Material Compatibility Assessment: To ensure optimal integration, clients are invited to submit their application materials for a thorough compatibility assessment.
- Precision Installation Guidelines: Following material compatibility confirmation, our technical team provides bespoke processing parameters.
- Zipper Care & Maintenance Protocols: Comprehensive guidelines are provided for the daily maintenance and long-term care of ZIZIP zippers.
Payment Method And Terms
After-sales Service
- Warranty Period: This product is covered by a 30-day limited warranty, effective from the date of goods receipt. Replacement units are available, and supplementary repair strips will be provided.
- Warranty Coverage: This warranty specifically covers performance issues such as water leakage, air leakage, or broken zipper teeth, directly attributable to material defects or manufacturing processes.
- Exclusions from Warranty:
-User-Induced Damage: Damage resulting from misuse, including but not limited to cutting, excessive force, or exposure to corrosive chemicals.
-Improper Maintenance: Issues arising from non-adherence to recommended maintenance guidelines (e.g., zipper obstruction due to uncleaned debris or sand).
-Unauthorized Alterations: Any repairs or modifications performed by third parties not authorized by ZIZIP.
